Print Head: Types Benefits and Uses

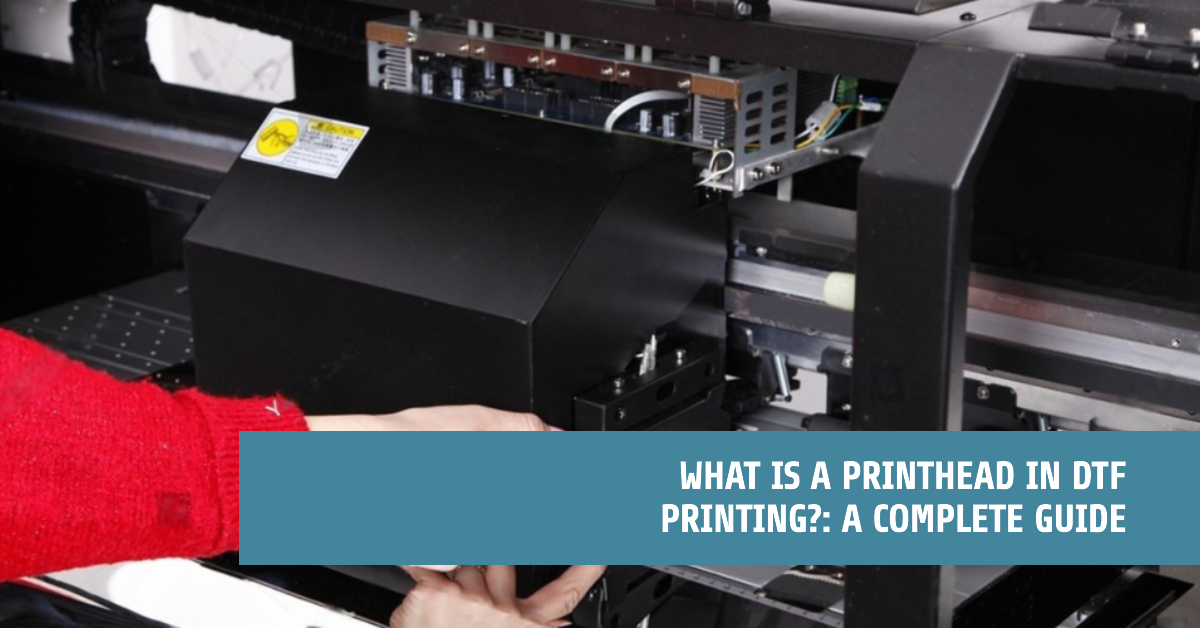

What is a Print Head in DTF Printing?

A print head is a crucial component in a printer that is responsible for transferring ink onto the page to create an image or text. It's essentially the showerhead of the printer that sprays tiny droplets of ink in a precise pattern to achieve the desired results.


Think of the print head as a tiny painter with many "brushes" (nozzles) lined up together. Each nozzle acts like a mini brush, carefully spraying tiny droplets of ink onto the film to build your design layer by layer.

These nozzles are extremely small and fine-tuned to ensure they release the exact amount of ink and droplet size needed. This careful calibration helps achieve sharp, high-resolution images with bright colors and detailed features, making every print stand out.

How Does the Print Head Work in DTF Printing?

The print head in a DTF printer operates on a principle similar to that of an inkjet printer, with a few crucial distinctions. Let's break it down in simple terms:

First off, DTF printers utilize piezoelectric print heads. These print heads rely on electrical signals to generate pressure waves, which then propel ink droplets from the nozzles onto the transfer film. This method is particularly effective because piezoelectric print heads are more durable and less likely to clog compared to the thermal print heads commonly found in inkjet printers.

Another key difference is the type of ink used. DTF printing employs a water-based ink mixed with a special adhesive. This adhesive is what allows the ink to stick to the transfer film and subsequently to the fabric when heat pressed.

Here's a step-by-step look at the process:

  • You start by sending a digital image to the printer.
  • The printer's RIP (Raster Image Processor) takes this image and converts it into a dot pattern.
  • As the print head moves across the transfer film, it ejects ink droplets based on the RIP's dot pattern instructions.
  • These ink droplets quickly dry on the transfer film.
  • Next, you heat press the transfer film onto the fabric.
  • The heat from this process activates the adhesive in the ink, ensuring it firmly attaches to the fabric fibers.

What are the two main types of Print Heads in DTF Printing?

In DTF printing, you'll primarily find two types of print heads being used, each with its own set of advantages and considerations. Let's delve into these:

Piezoelectric Print Heads:

These are the go-to choose for many DTF printers, and here's why:

Accuracy: They use electrical signals to generate pressure pulses, allowing for the precise placement of ink droplets. This results in sharp, high-resolution prints that bring your designs to life with clarity.

Durability: Built to last, piezoelectric print heads can withstand the rigors of high-volume printing, making them a reliable option for your printing needs.

Ink Compatibility: They're versatile and able to work with a broad spectrum of ink types, including those specifically formulated for DTF printing. This flexibility lets you choose the best ink for your projects.

Thermal Print Heads:

These print heads come with a more attractive price point but have their own set of drawbacks:

Lower Precision: They operate by heating ink to create vaporized droplets, which can lead to less consistent droplet sizes and placement. As a result, print quality might not always match that of piezoelectric counterparts.

Less Durable: More frequent replacements might be needed if you're running high-volume print jobs, as thermal print heads can wear out faster.

Ink Compatibility: With stricter requirements on the types of ink they can use, your choices might be limited, potentially affecting the flexibility of your printing operations.

Understanding the differences between these two types of print heads can help you make informed decisions based on your specific printing needs, budget, and desired print quality.

What are the Benefits of the Print Head in DTF Printing?

In DTF printing, the print head is essential for producing high-quality transfers. Let's explore the advantages it brings to your printing projects:

Excellent Image Quality:

Precision Droplet Placement: Whether you're using piezoelectric or thermal print heads, they excel in placing ink droplets with precision. This accuracy results in sharp, detailed images with seamless color gradients.

Wide Color Gamut: With the capability to house multiple ink cartridges, print heads enable vibrant color reproduction, bringing your designs to life with striking visuals.

Fine Detail Capture: Thanks to small nozzle sizes and controlled ink flow, print heads adeptly capture intricate details, such as tiny text and fine lines, ensuring your designs are clear and precise.

Flexibility and Versatility:

Direct-to-Film Printing: The print head allows for direct printing onto transfer film, bypassing the need for any pre-treatments and streamlining your workflow.

Compatibility with Various Fabrics: The inks used in DTF printing is compatible with a broad array of fabrics. This versatility means you can print on different materials, expanding your creative possibilities.

Scalability: Print heads come in various models to suit different production volumes, making it easier for you to scale your operations, whether you're working on small custom batches or large orders.

Additional Advantages:

Durability: Both piezoelectric and thermal print heads are designed for longevity, especially with regular maintenance, ensuring a long service life.

Efficiency: Some print head models enable fast printing speeds, helping your complete projects more quickly without sacrificing quality.

Ease of Use: While DTF printing technology requires a bit of technical knowledge, printers equipped with quality print heads are generally user-friendly, catering to both novices and experienced professionals.

What to Consider When Choosing a Print Head for DTF Printing?

Choosing the right print head for DTF printing involves considering various factors to ensure it meets your needs. Here's what you should keep in mind:


Printer Model: Make sure the print head fits your specific DTF printer model. Using the wrong type can cause poor performance or damage.

Ink Type: It's crucial to select a print head that works well with DTF inks you plan to use. Different print heads may have unique requirements for ink compatibility.

Print Quality:

Technology: Piezoelectric print heads are known for their high precision and resolution, making them a good choice if you're aiming for top-notch print quality.

Native Resolution: The higher the resolution, the better the detail in your prints. Consider how much detail you need for your projects when choosing.

Minimum Droplet Size: Smaller ink droplets create smoother gradients and more accurate colors, essential for high-quality prints.


Print Speed: For those with high-volume needs, a faster print head can keep your operations efficient.

Durability: Look for a print head that can handle your workload without frequent replacements. Durability is key for continuous operation.

Maintenance: Consider how much time and effort you're willing to invest in cleaning and maintaining the printhead. Some may require more upkeep than others.


Initial Cost: While piezoelectric print heads might have a higher initial price, they offer benefits that could outweigh the cost for some users.

Operating Costs: Think about long-term expenses, including replacement parts, compatible inks, and maintenance. These can add up and affect your budget.

Additional Features:

White Ink Capability: If you're planning to print with white ink, ensure the print head is designed to handle it without clogging.

Color Gamut: A print head that supports a wide color gamut can produce more vibrant and diverse prints, enhancing the visual appeal of your products.

By carefully considering these factors, you can choose a print head that not only fits your DTF printer but also aligns with your printing goals, budget, and operational capabilities.

What is the Recommended Droplet Size of the Print Head in DTF Printing?

Desired Print Quality:

High-res detail and smooth gradients: Smaller droplets (3-5 picoliters) offer superior quality but may be slower and costlier.

Good quality for most applications: Mid-range sizes (7-10 picoliters) provide a balance between quality and speed/cost.

Lower volume, simpler designs: Larger droplets (12+ picoliters) can be suitable for less detailed work but might show banding or reduced sharpness.

What is the Expected Lifespan of the Print Head in DTF Printing?

Piezoelectric Print Heads:

Lower end: 500 - 1,000 printing hours (with heavy use, incompatible inks, or poor maintenance).

Mid-range: 2,000 - 5,000 printing hours (with moderate use, compatible inks, and regular maintenance).

High end: 5,000+ printing hours (with light use, optimal conditions, and meticulous care).

Thermal Print Heads:

Lower end: 200 - 500 printing hours (with heavy use, incompatible inks, or poor maintenance).

Mid-range: 500 - 1,000 printing hours (with moderate use, compatible inks, and regular maintenance).

High end: 1,000 - 2,000 printing hours (with light use, optimal conditions, and meticulous care).

How Fast Can the Print Head Move Across the Page in DTF Printing?

When you're looking into DTF (Direct to Film) printing, one of the key factors you'll consider is how fast the print head can move across the page. This speed isn't fixed; it varies widely depending on several factors:

Print Head Specifications: Different DTF printers come with different print heads, each capable of reaching its own maximum speed. This speed can range significantly, from about 3-4 meters per second to more than 10 meters per second.

Print Resolution and Quality Settings: If you're aiming for high-resolution and detailed prints, we'll need to slow down the printing speed to ensure accurate ink placement. On the flip side, we can speed up the process for lower resolution prints.

Number of Passes: Many DTF printers employ a multi-pass system, where the print head covers the same area multiple times to increase ink density and achieve the desired color vibrancy. Naturally, more passes mean slower printing speeds.

Ink Type and Viscosity: The type of DTF ink we use also plays a role. Inks with different viscosities flow and dry at different rates. Inks that dry faster may allow us to print more quickly without worrying about smudging.

Printer Model and Capabilities: The specific DTF printer model you choose has a big impact on speed. Each model comes with its own set of internal processing power and mechanical capabilities. Generally, higher-end models are capable of faster printing speeds.

Computer and Software Performance: Lastly, the performance of the computer connected to the printer and the software being used can affect printing speed. A slow computer or outdated software can create a bottleneck, slowing down the entire printing process.
